--技術背景--(Technical Background)：

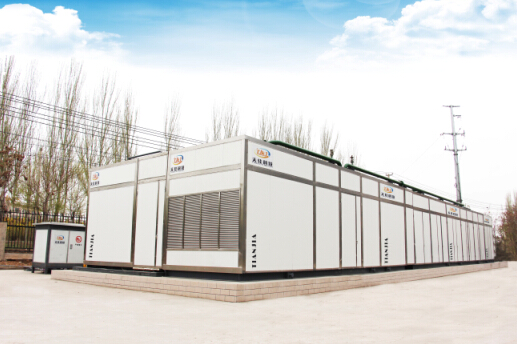

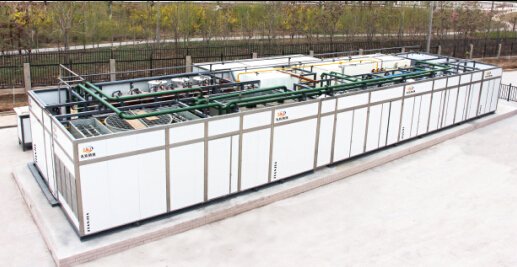

  “模塊式天然氣液化裝置”是采用高度集成、模塊化的液化設備對非常規天然氣（不便于管輸的邊遠氣井天然氣、頁巖氣、煤層氣、油田伴生氣、鹽井伴生氣，工業尾氣和生物質轉化的燃氣）進行綜合回收利用。采用現場液化方式避免了大量地面設施及管道投資，建立一種液化工廠直接對接終端用戶和進入LNG 現貨市場的生產運營模式。

“Modular Liquefaction Equipment for Natural Gas” is a highly integrated, modularized liquefaction facility which is designed for unconventional natural gas (such as remote gas well which is inconvenient to transport, shale gas, coal bed gas, oil field associated gas, salt well associated gas, industry exhaust, gas conversion from biomass) complex recycle and utilization. It artfully adopts on-field liquefaction mode which may avoid huge investment on ground facility and pipe line construction, and builds a new production and operation mode which realize direct hand-shake between LNG plant and end consumer or LNG spot market.

--工藝說明--(Process Brief)：

1、原料氣凈化（Raw Gas Purifying）：

  采用擁有自主知識產權的專利技術凈化方法對原料氣進行凈化處理，使原料氣中的酸性氣體含量達到工藝要求。凈化過程操作簡單，能耗低，適用范圍廣，能用適用于各種常見的天然氣氣源。

  By adopting independent intellectual property and patented technology, acidic gases level in raw gas can be purified to the Process requirement. The purifying process is easy to operator, low energy consumption and wide applicable for all kinds of ordinary raw gas sources.

2、天然氣液化（Gas Liquefaction）

   采用氮氣循環膨脹制冷工藝：利用高壓制冷劑通過透平膨脹機絕熱膨脹的克勞德循環制冷來實現天然氣的液化。氣體在膨脹機中膨脹降溫的同時，輸出功，用于驅動流程中的壓縮機。氮氣膨脹循環流程簡單、緊湊，造價相對較低。起動快，熱態起動2～4 小時即可獲得滿負荷產品，運行靈活，適應性強，易于操作和控制，安全性好，放空不會引起火災或爆炸危險。

   It adopts nitrogen cycle expander refrigeration technology: Natural gas gets liquefied in Claude refrigeration cycle due to the adiabatic expansion of high press refrigerant in turbo expander, gas output work during the expansion cooling process, and the expansion work recovered and utilized to drive gas compressor. This process flow is simple, compact, low cost, and quick start. Production load can reach full within 2~4 hours from hot startup. The process described here has flexible, wide applicable, and convenient control performance. It is also has fine safety against fire or blast for air relief.

--技術特點--（Technical Features）:

1、裝置高度智能化和集成化；

2、創新的凈化工藝，能耗更低，設備更小型化；

3、公用工程模塊化，集裝箱式控制；

4、每個模塊由PLC控制，PLC與通過TCP/IP協議與上位機通信，減少儀表接線；

5、完善的控制方案，操作簡便，性能穩定。

1、Highly intelligent and integrated;

2、Innovated purifying process with low energy consumption and equipment

3、Modularized Utility Engineering，Container alike centralized control;

4、All modules are controlled by PLC, and PLC communicates with computer via TCP/IP protocol, reduce cables to equipments;

5、 Sophisticated control platform, easy to operator, running stable.

--裝置適用范圍--（Area of Application）:

1、各非常規天然氣（頁巖氣、煤層氣、沼氣）；

2、邊遠氣井（孤井、單井、試驗井）

3、油田伴生氣、鹽井伴生氣；

4、工業尾氣和生物質轉化的燃氣。

1、Various unconventional natural gas (shale gas, coal bed gas, methane);

2、Remote gas well (solitary well, single – well, test well);

3、Oil field associated gas, salt well associated gas;

4、Industry exhaust, gas conversion from biomass.

--主要技術參數--  （Technical Specifications）:

1、天然氣處理量10000－100000Nm3/d ；

2、原料天然氣CO2含量≤20％，H2S含量≤10％；

3、單位產品電耗≤0.65 KWh/ Nm3的LNG產品；

4、LNG產品參數：溫度 －155℃，壓力0.1MPa.G。

1、Gas throughput, 10,000~100,000 Nm³/day;

2、CO₂ level≤20%, H₂S level ≤10% in raw gas;

3、Power consumption≤0.65 KWh against 1 Nm³ LNG Production;

4、LNG product parameters: Temperature: -155℃，Pressure: 0.1MPa.G

--裝置優勢--（Unique Advantage）:

1、靈活性：可隨時移動，通過汽車運輸搬遷至不同氣源地方生產；

2、穩定性：工藝成熟可靠，設備標準化生產；

3、便捷性：裝置都在工廠內完成生產調試，氣源現場只需要簡單連接即可投運；

4、空間省：整體裝置占地面積小，只需300－500平米；

5、經濟性：投資大大低于同產能的固定工廠，節約投資可達30％；

6、工期短：裝置5個月交付使用，相對于建設固定工廠，縮短約三分之二的周期。

1、Flexibility：Moveable as needed, it can be easily delivered to any gas source destination via truck;

2、 Stability: Mature and reliable Process, standardized manufacture;

      3、Convenience: Successfully Commissioned in factory, Plug to Operation on gas source field;

       4、Space saving: Small footprint around 300-500 m² for whole equipment；

5、Economy: 30% investment saving against same capacity fixed plant;

      6、Express Implementation: 5 months to production, 2/3 construction time saving against same capacity fixed plant.

注：本文摘自：銀川天佳能源科技股份有限公司網站
